- Place of Origin: China
- Brand Name: xuzhong
- Model Number: 820

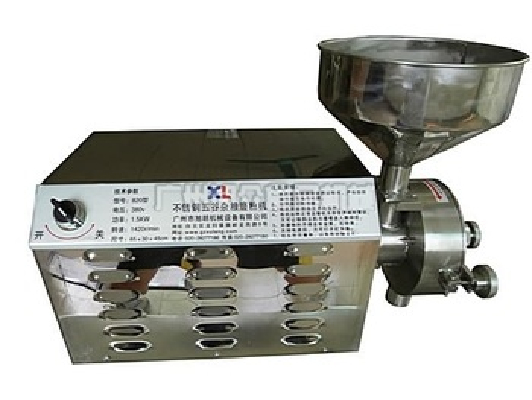

Open the case and cover, will be moving grinding, feeders,washers,bearings,seals,etc,installed.
Will be covered hopper will feed into the shell mouth.In the mill,it will baffle opening smaller,so as not to feed too fast,stuck motor.
Static grinding to prevent rotation,tighten the screws should be set in the regulation of slot.
Milling,the materials required to dry wet materials shall not be used,otherwise it will stick grinding ,the material can not come out.
Grinding work space must be based on the thickness of the material needed to be adjusted,loosen the adjustment screws,coarse and fine adjustment by adjusting screw ,adjust appropriately,it will tighten the screws.
Static grinding adjustment,first remove the end cap,loosen the adjustment screws and lock out button, then release the clamp screws and screws ,and then turn to the lefe spinle solution to mobilize the handle until the static and dynamic grinding grinding 2 face overlap, such as turning the sound issue even when contact with the appropriate tightening
- Place of Origin: China
- Brand Name: xuzhong
- Model Number: 820
Voltage | 220V |
Power | 1500W |
Motor speed | 1420r/min |
Output | 20-40kg/h |
Fineness | 50-200 |
Size | 650×300×450mm |
Net weight | 40 |
